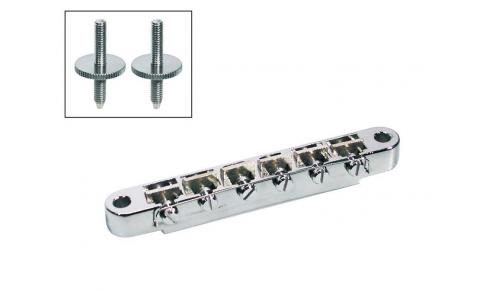

B-160-N | bridge for e-guitar

bridge for e-guitar, tune-o-matic, ABR-1, stud spacing 73,5mm, stud diam 4 mm, nickel

Boston Musical Products is also known for its wide range of guitar parts for both electric and acoustic guitars, but also bass and other string instruments. With over 3,000 guitar parts, Boston is ideal to upgrade or repair your instrument, but also building your own instrument is a possibility.

This B-160-N bridge is a replacement part for the famous ABR-1 bridge.
specifications

post diameter: 4 mm
post length: 30 mm
post spacing: 73,5 mm
string spacing: 52 mm
radius: 12"
wire retainer: yes
saddles not notched
nickel finish
